AGV-header

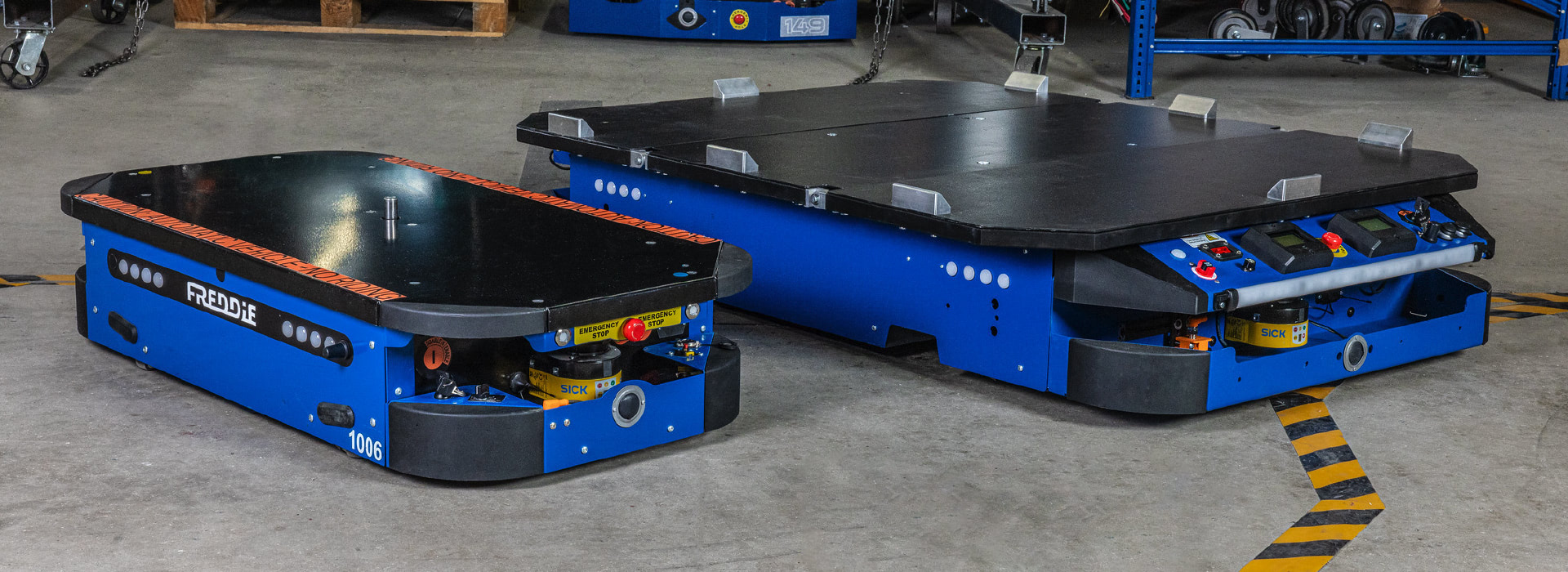

Fred Automated Guided Vehicles

hero_secondary
SIMPLE, DURABLE

Automation

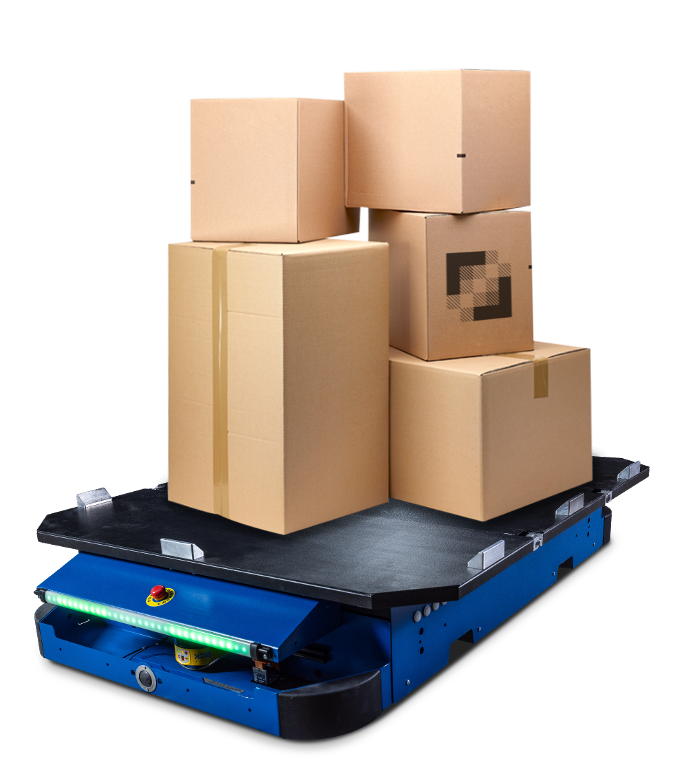

Our Fred Automated Guided Vehicles (AGVs) are built for manufacturing, distribution, and warehouse facilities to improve worker productivity and safety around materials movement.

Our niche is automating processes that move goods from Point A to Point B. Our AGVs are designed to limit opportunities for downtime and expected to deliver a payback in less than 12 months. Fred’s technology is not intimidating, and results are tangible.

We design, assemble, and support the production of our robotics solutions in our Philadelphia, Pennsylvania office.

Fred-Render-WithBoxes-Flipped-1
background-line-right-agv




dark_blue_and_white_top_left-2

What’s an AGV?

  • AGVs operate using dedicated space within a facility by following magnetic strips, magnets, or beacons as part of the infrastructure required for their operation.
  • AGVs are best suited for environments with fixed, predetermined routes and tasks—duties like transporting materials, intra-facility movements, and workstation delivery needs.
  • Because AGVs are technologically simpler than AMRs, they often tend to be more cost-effective.
top_white_and_bottom_white

Features & Benefits

Freds make it easy to automate your workflows, so you can boost your facility's productivity, safety, and bottom line.

1

SIMPLICITY

Compared to other AGVs, Fred is remarkably easy to set up, use and maintain.

  • Guided by easy-to-install magnetic tape
  • Path adjustments are even quicker and easier than the initial setup
  • Doesn’t use WiFi, GPS, or Bluetooth, so there are never any connectivity issues or hacking concerns
  • No programming, expensive IT support, or software maintenance agreements required
Simplicity
  • FRED Logo
    FRED-133919_RT1-v3
    Other Robots (& AMRs)
    image10-v3
  • Simple, efficient setup
    check-solid
    check-solid
  • Automated charging
    check-solid
    check-solid
  • Requires limited ongoing IT
    check-solid
    Unlikely
  • Requires no WiFi, GPS, or Bluetooth (but can be connected)
    check-solid
    check-solid
  • Can be maintained by existing personnel
    check-solid
    check-solid
  • Limited upfront capital investment
    check-solid
    Unlikely

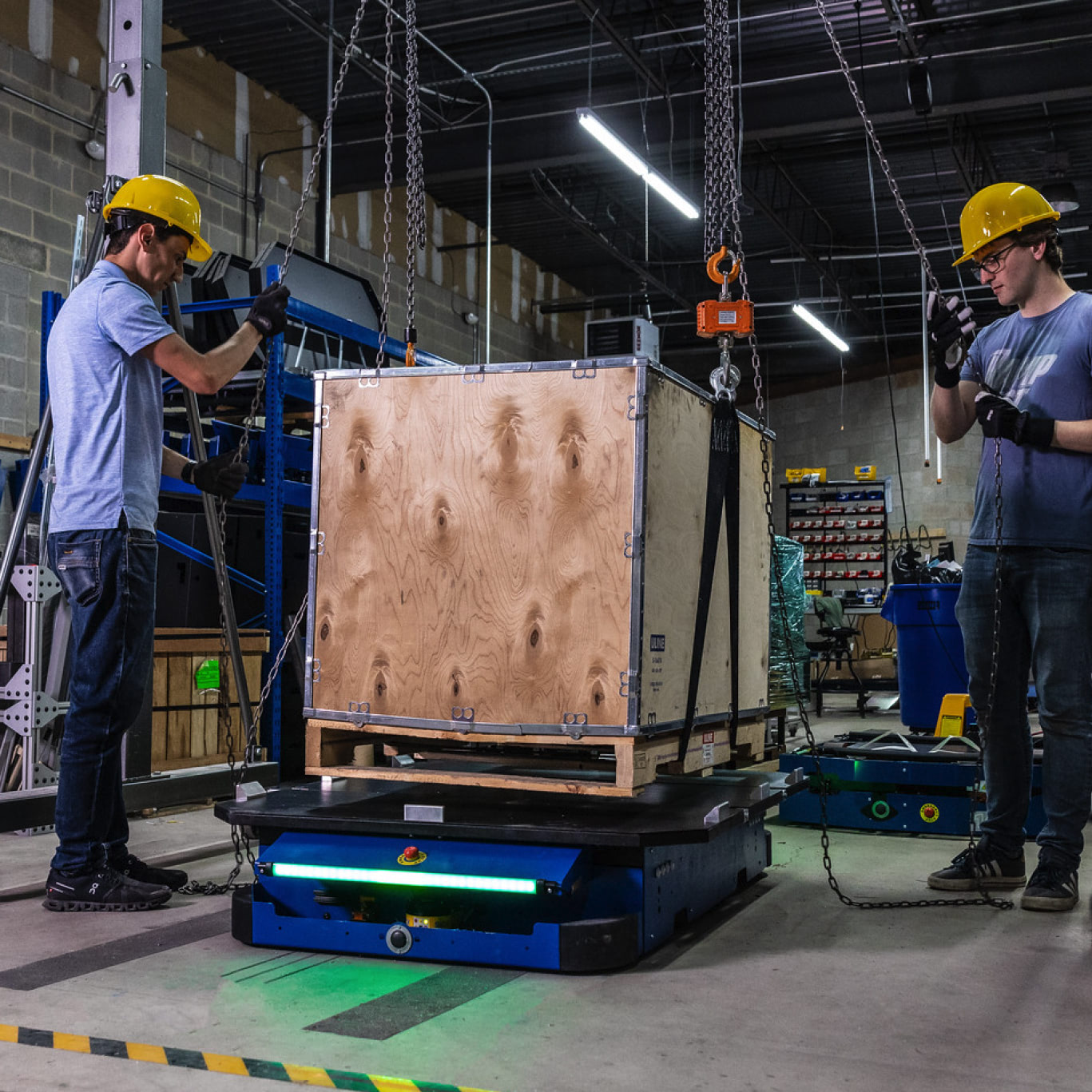

Productivity
2

PRODUCTIVITY

Fred AGVs are mobile productivity powerhouses that create new opportunities for efficiency in your facility and among your workforce. And both drive near-instant business results thanks to the quickest ROIs you can find from any AGV on the market.

  • Works hard and without breaks 24/7/365
  • Reduces product and facility damage caused by human transport
  • Solves labor-shortage issues and employee-training investments
  • Frees up significant space for additional manufacturing lines or warehousing
3

FORKLIFT VS. FRED

What's the best use of your valuable employees?

FORKLIFT

  • Stuck moving materials
  • Inefficient use of time
  • Unstimulating work leaves little opportunity to problem solve
  • Constrained by labor shortages
  • New labor more expensive to onboard, train & license
  • Often needs to work overtime
Forklift_v_Fred-1

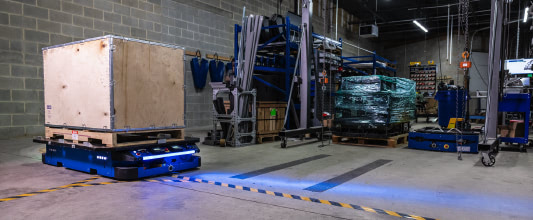

FRED

  • Redeployed to more valuable tasks
  • Focused & productive use of time
  • New opportunities for stimulating
  • work & problem solving
  • Freed up despite labor shortages
  • New labor less expensive to onboard, train & license
  • Enjoys desired work-life balance & more productive shift
Forklift_v_Fred-2
4

FLEXIBILITY

Compared to conveyors, forklifts, pallet jacks, and tuggers, Freds are extremely flexible in their abilities to solve your challenges.

  • Works in nearly any warehouse or indoor space to serve many applications
  • A variety of customizable ways to move goods on- and off-platform
  • Manage a multitude of load types with up to 2,500 lb carrying or 5,000 lb towing capacities
  • Reconfigure paths at any time to free up floor space or change projects
5

DURABILITY

Fred AGVs are built like tanks—inside and out. Despite requiring far less maintenance, they can outlast forklifts, tuggers, conveyors, AMRs, and other AGVs.

  • Powered by the industry’s most robust wheel drives to decrease maintenance, breakdowns, and downtime
  • Heavy-duty steel construction and smart design makes them nearly impervious to damage
  • Super-strong, large, long-lasting wheels easily handle the rigors of repetitive motion
6

SAFETY

Fred AGVs drastically reduce the common risks associated with moving materials. Each includes the same intelligent features to keep your workers, products, and facility safe.

  • Handles dangerous tasks to help reduce workers’ compensation claims
  • Safety lasers scan for objects or people in their path to bring the AGVs to an immediate stop
  • Blue lights and audible beeps announce travel direction and presence
  • Adjustable speed controls for enhanced safety
  • Reduced or eliminated forklift and tugger traffic create a far safer work environment
Whitepaper

Driving Automation Forward with AGVs Whitepaper

Read our whitepaper to learn how Fred can optimize your End of Line packaging processes with stretch wrappers, conveyors, palletizers, and more.

2023-BAR-FredWhitepaper-DeviceImage
AGV-CTA-area

Applications

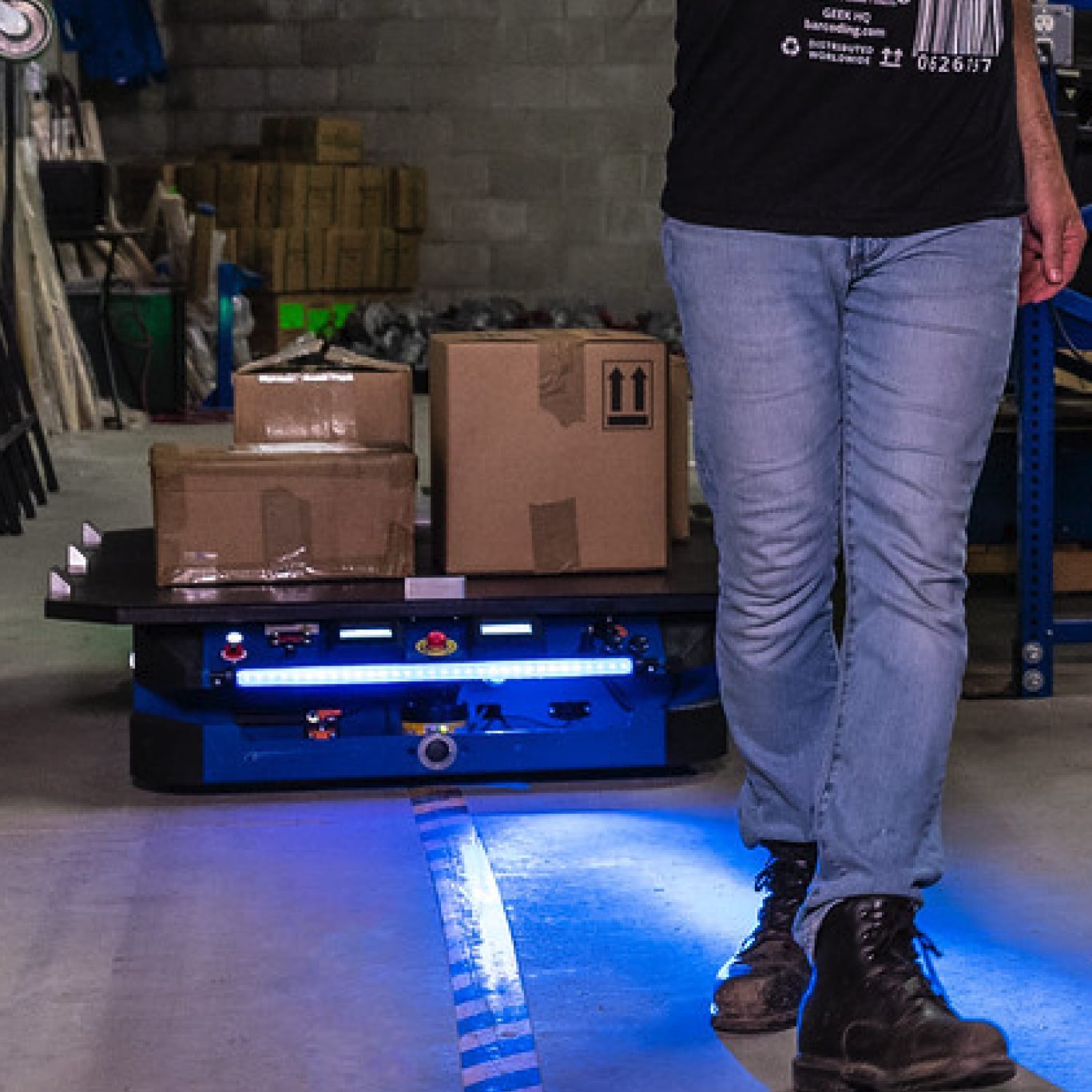

Increase productivity, reduce costs, and optimize your facility with Fred! There are a variety of applications including carrying, towing, and custom solutions.

Applications
CARRYING

Let Fred carry loads up to 2,500 lb. or tow 5000 lb., respectively. Redeploy your workforce where they’re most valuable. And save significant space, money, time, and risk. What could be simpler?

top_white_and_bottom_white

Specs & Options

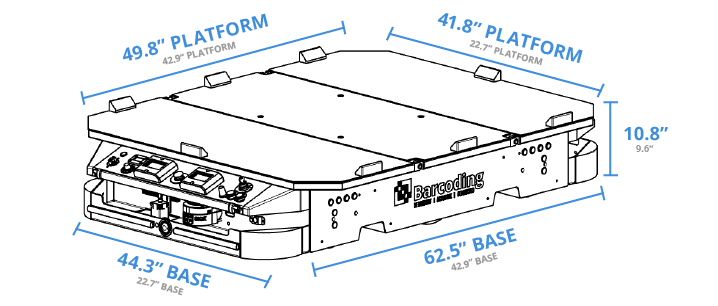

Fred (Gen 3)

  • 630 lb. empty weight; 2,500 lb. max payload; 5,000 lb. max tow load
  • 62.5” (L) × 44.3” (W) × 10.8” (H) with top plate
  • Up to ~1” ground clearance for use on uneven floors
  • Two 12V AGM batteries standard
  • Standard platform for 40” × 48” & euro skids for easy loading
  • Bidirectional for operational flexibility

Compact Fred (Freddie)

  • 200 lb. empty weight; 400 lb. max payload
  • 42.9” (L) × 22.7” (W) × 9.6” (H) with top plate
  • Up to ~1” ground clearance for use on uneven floors
  • Two 12V AGM batteries standard
  • Bidirectional for operational flexibility
Fred-Website-Specs

Towing Has Never Been So Easy

The towing option allows Fred to tow loads of up to 5,000 lb. depending on dolly capacity. This option also enables the quick removal of loads without needing to wait for an available forklift.

What’s Included

The towing option uses one of three available hitches (depending on the application) to hold the dolly and/or cart tongue to the hitch on FRED. Dollies and/or carts are available in diverse sizes to suit your needs.

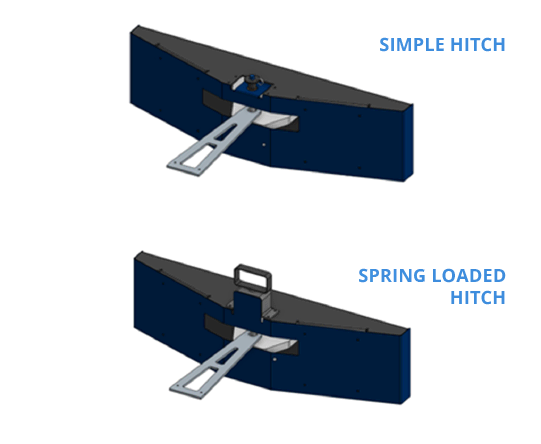

Available Hitches

  • Simple Hitch
  • Spring Loaded Hitch
  • Quick Release Hitch (coming soon)
Fred-Website-Specs-Hitch-02

Always at the Ready

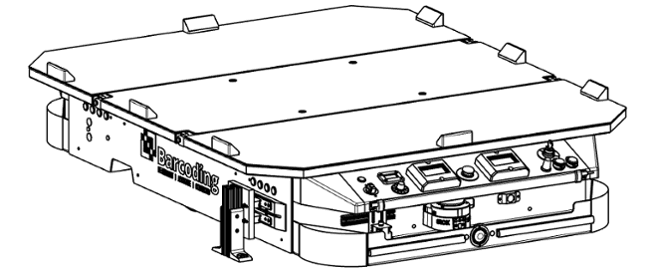

With contact charging, you never need to worry about keeping Fred or Compact Fred juiced up and ready to go. Contact chargers allow for automatic charging whenever stopped at charging locations.

What’s Included

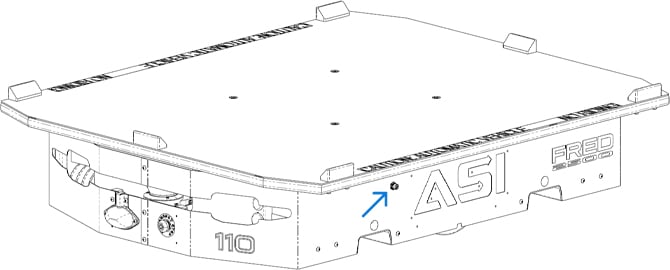

Contact charging includes a collector mounted on the side and/or bottom of Fred or Compact Fred, a floor pad, and a plug-in charger. The charger plugs into a 15A minimum AC power outlet. No power will flow to the contact pads until the AGV connects and the charger detects a battery ready to be charged.

Use Case

Contact charging is ideal in a 3-shift operation. The contact charging location should be selected so Fred or Compact Fred spend the majority of their idle time on the charger. You may also want to use contact charging to ensure they’re automatically charged for a 1- or 2-shift operation. In this case, you want to be sure they stop at the charging location for the full length of any unused shift. It’s possible to install multiple contact chargers if you’re unable to ensure the AGVs can stop at just one location.

Marketing Contact Charging_Side Mount-1

State of the State

We have a bevy of sensors for detecting practically any condition within your AGV operating space. Customizable logic can then be set for both Fred and Compact Fred to react to the change in state. WIFI and non-WIFI communication protocols are available.

What’s Included

Part presence kit that can handle up to 4 sensors and customizable sensor condition setting software.

Common Conditional States:

  • Object Presence: A pallet or crate is now available for pickup. Conversely, a pallet or crate is needed at a location that is “empty”.
  • Fill State: A container has been filled or emptied and is ready for pickup/drop-off.
  • AGV Parked: Fred or Compact Fred in a pre-designed parking/que space and is available or not available.
  • Traffic Control: Stop/Start Fred or Compact Fred. Conversely, communicate to personnel to an approaching Fred or Compact Fred (traffic light).

No WIFI No Problem

Fred or Compact Fred can always be added to an existing WIFI infrastructure. However, WIFI can be spotty particularly in larger facilities. Additionally, WIFI command and control systems means much more complexity and cost. By installing our contact, I/O kits at critical way/decision points within the operating space of Fred or Compact Fred you can communicate with Fred and command it and/or gather onboard data.

What’s Included

Contact I/O kit. Utilizes similar contact technology as a contact charging option.

Complexity Levels:

  • Basic: Up to 8 one-way (to robot) discrete commands
  • Professional: PLC Ladder Logic two-way (to robot/from robot). Sequencing left-hand rail to right-hand rail and from first to last rung.
  • Enterprise: Can Bus (Can Open) two-way (to robot/from robot). Sequencing multi-threaded and/or piped state machine.

Beckon from Afar

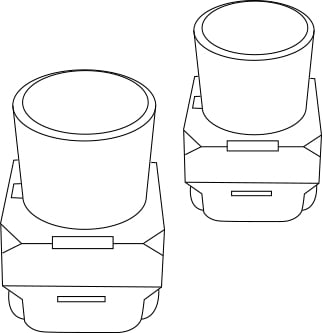

Wireless control buttons duplicate the functionality of the buttons on either end of Fred or Compact Fred, but can be triggered from up to 100 meters away.

What’s Included

All you need is a wireless START/STOP button. Buttons are available in an assortment of colors. One wireless receiver is mounted on Fred. Contact us for details.

Operation

Buttons will come from the factory preprogrammed to control either Fred or Compact Fred. Different colors can be set to trigger different directions of travel. The buttons are designed for line-of-site operation. There’s an indicator light on the button which will flash green if Fred or Compact Fred receives a good signal, yellow if a weak signal, and red if no signal. If the indicator light flashes red, reposition the button or move closer to either AGV and press again.

top_gray_and_bottom_white
Infographic

AGVs: There’s More to the Story—Let’s Move Past These 10 Automated Guided Vehicle Myths

Unlock the full potential of AGVs in your operations. View our infographic and start transforming your business today!

AGVs_Myth_Infographic_iPad
